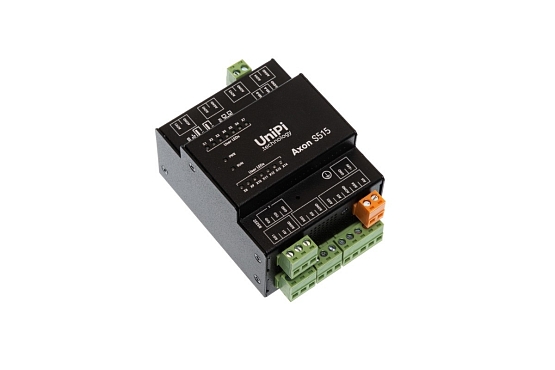

Unipi Axon S515

Product description

Unipi Axon S515 is a programmable logic controller (PLC) and gateway designed for automation, control, regulation and monitoring. As an entry model of the Axon 500 line, the S505 features a set of analog inputs/outputs while retaining its compact size. That makes it suitable for use in small projects including reading data from analog sensors and/or controlling various analog components. The S515 also features a pair of serial interfaces (RS485 + RS232) for connection of extension modules or gateways.

Basic features

*more detailed info about the number and type of analogue I/Os is available in the product's datasheet (see the Files tab above)

Inputs & outputs description

Analog input (AI) is designed to measure voltage, current or resistance in order to read values from various analog sensors (pressure meters, thermometers, tension gauges etc.).

Analog output (AO) is used to control and regulate devices such as three-way valves, electric motors, inverter drives, heat exchangers etc. by direct current or voltage.

Computing module

Axon controllers are powered by a quad-core, 1.2GHz Alwinner H5 CPU and feature a 1GB RAM for an excellent performance. The 8GB onboard eMMC memory then offers better reliability compared to systems relying on microSD cards as memory storage.

Communication interfaces

By default, all Axon controllers feature RS485 serial lines. This type of interface usually uses the Modbus RTU protocol and can be used for communication with various devices such as Extension xS extension modules, energy meters, touchscreen HMI displays, controllers from other vendors, various sensors etc. A single bus can support dozens of devices while its length can reach up to several hundred meters.

Selected models also feature a single RS232 serial line. In the field of automation, this interface is usually used for communication with various converters, closed-in technologies or display devices such as HMI panels.

A single 1-Wire bus is also available on selected models. This interface uses 2-3 conductors for collecting data from various 1-Wire sensors such as thermometers, humidity meters, light intensity sensors etc.). A single 1-Wire bus supports up to 15 devices, the overall length of the bus can reach up to 200 meters.

By default, all Axon controllers feature a single 1Gbit Ethernet port for network communication.

Software options

Thanks to the software openness of Unipi controllers customers can choose from a broad range of software solutions and are not limited to a single platform Among supported solutions are both commercial and open-source systems. Visit the Other software overview for the list of other supported solutions.

The main supported solution is the Mervis control system - a platform developed under the IEC 61131-3 standard for PLC programming, that includes SCADA interface for remote management and monitoring, a comprehensible development environment, a human-machine interface (HMI) editor and an online/on-premise database for storing historical data and retrospective analysis of the controlled technology's operation.

Aside from commercial platforms you can also choose any from the list of supported open-source solutions, or use the EVOK API (Websocket, REST,...) Modbus TCP, SysFS or other tools for implementing your logic in any programming language. Visit this link for the list of supported software solutions.

Package contents

• Axon controller
• removable screw terminals
• DIN rail holder (35 mm)
• 2× DIN rail holder mounting screws
• 1× grounding screw
• instruction leaflet
• lifetime Mervis license code

Other features

All components of the controller are encased within a durable aluminium chassis (IP20 protection). The controller is designed for mounting on a standard DIN rail (35 mm).

Axon line model overview

1- 2× Ethernet (1 Gbit + 10/100 Mbit)
2 - wireless LTE module
