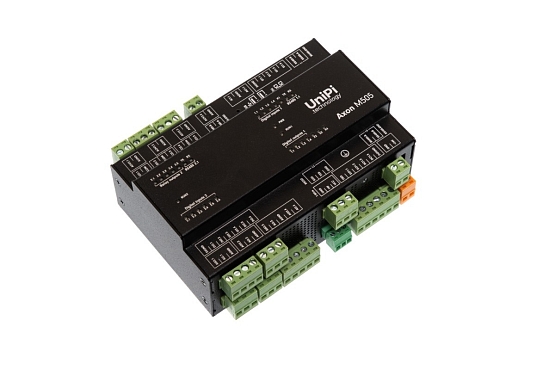

Unipi Axon M505
Note: This product was phased out of production and was replaced by the Axon M525.
Unipi Axon M505 is a programmable logic controller (PLC) designed for control, monitoring and regulation. M505 programmable logic controller features an increased number of analog I/Os and three RS485 serial lines, combined with an increased number of digital inputs and relay outputs.
Features
- universal architecture with higher number of I/Os
- increased number of analog I/Os, four serial lines (RS485 + RS232)
- durable aluminium chassis (IP20 protection), wider operating temperature range
- integrated industrial computer (quad-core CPU, 1 GB RAM)
- onboard 8GB eMMC memory
- designed for DIN rail mounting
- RS485 and RS232 serial lines
- software openness (based on Linux OS)
- preinstalled Mervis software (can be manually reflashed)
Discontinued
Product description
The M505 features multiple analogue I/O modules and three RS485 lines while retaining a set of digital and relay I/O capability. Multiple analogue inputs can be used for automation tasks requiring either receiving of voltage or current signal for gathering data from corresponding sensors (such as resistance thermometers), while analogue outputs are designed for control and regulation of external devices such as three-way valves or heat exchangers. The additional RS485 bus port then allows connecting devices using two different communication protocols. The M505 represents a smaller variant of the L505 unit.
Basic features
| Digital inputs | 10 | Common features Industrial computer (1.2GHz quad-core ARM CPU, 1GB RAM) 8GB eMMC onboard memory 2× USB 2.0 1× 1Gbit Ethernet Wi-Fi, Bluetooth Extended operating temperature range Aluminium chassis (IP20) |
| Digital outputs | 4 | |
| Relay outputs | 5 | |
| Analogue inputs* | 5 | |
| Analogue outputs* | 5 | |
| RS485 serial interface | 3 | |
| RS232 serial interface | 1 | |
| 1-Wire bus | 1 | |
| Ethernet | 1 |
*more detailed info about the number and type of analogue I/Os is available in the product's datasheet (see the Files tab above)
Inputs & outputs description
Digital inputs (DI) are designed to read binary logic states represented by direct voltage levels. That makes them suitable for reading data from various binary sensors and devices such as switches (on/off), motion sensors (movement detected/not detected), liquid level sensors (full tank/empty tank) etc.
Digital outputs (DI) are intended for switching various binary devices (lighting, smart door locks, drives of shutters and blinds etc.) through direct voltage. DO's also feature a Pulse-Width Modulation (PWM) function allowing to use the output for analogue control.
Relay outputs (RO) are primarily used for switching two-state devices with higher current draw such as lightbulbs, thermoelectric valve drives, water heaters, pumps etc.
Analogue inputs (AI) are designed to measure voltage, current or resistance to read values from various analogue sensors such as thermometers, pressure meters, tensometers etc.
Analogue outputs (AO) serve for control of multi-state external devices through direct voltage or current and is suitable for control and regulation of devices such as three-way valves, heat exchangers, electric motors etc.
Computing module
As a computing module, the Axon controllers use an industrial computer featuring a quad-core, 1.2GHz Alwinner H5 CPU and 1GB RAM, giving Axons an excellent performance. The 8GB onboard eMMC memory then offers better reliability compared to systems relying on microSD memory cards.
Communication interfaces
Axon controllers are by default provided with RS485 serial lines. This type of interface usually uses the Modbus RTU protocol and can be used to communicate with various devices such as Extension xS extension modules, energy meters, touchscreen HMI displays, controllers from other vendors, various sensors etc. A single bus can support dozens of devices while the bus' length can reach up to several hundred meters.
Selected models also feature a single RS232 serial line. In the field of automation, this interface is usually used for communication with various converters, closed-in technologies or display devices such as HMI panels.
A single 1-Wire bus is also featured on selected models. This interface uses 2-3 conductors for collecting data from various 1-Wire sensors such as thermometers, humidity meters, light intensity sensors etc.). A single 1-Wire bus supports up to 15 devices, the overall length of the bus can reach up to 100 meters.
All Axon models also feature a single 1Gbit Ethernet port for network communication.
Software options
Thanks to the software openness of Unipi controllers customers can choose from a broad range of software solutions and are not limited to a single proprietary platform. Among supported solutions are both commercial and open-source systems.
The main supported platform for Unipi controllers is the Mervis control system. This platform is developed under the IEC 61131-3 PLC programming standard and consists of comprehensible and user-friendly Mervis IDE development environment, an HMI editor for creating and editing of user interfaces, SCADA interface and an online/on-premise cloud database for long-term collecting of operational data and their analysis. Axon-line controllers are shipped with the Mervis already installed.
Aside from commercial platforms (such as CODESYS), customers can also choose from a variety of open-source solutions; for the supported software overview please visit this link.
Alternatively, customers can use the Unipi-developed EVOK open-source API to integrate Unipi controllers into already existing software solutions, use custom code or to develop applications for the controllers.
Package contents
- controller
- removable screw terminals
- DIN rail holder (35 mm)
- 2× DIN rail holder mounting screws
- 1× grounding screw
- instruction leaflet
- lifetime Mervis license code
Other features
All components of the controller are encased within a durable aluminium chassis (IP20 protection). The controller is designed for mounting on a standard DIN rail (35 mm).
Axon model overview
| Name | DI | DO | RO | AI | AO | RS485 | RS232 | 1-Wire | Common features |
| Type S, size on a DIN rail: 4 modules (7 cm) |
1.2GHz quad-core ARM CPU (1.2 GHz) 1GB RAM 8GB eMMC onboard memory 2× USB 2.0 Wi-Fi, Bluetooth Aluminium chassis (IP20) Extended operating temperature range |
||||||||
| S105 | 4 | 4 | - | 1 | 1 | 2 | 1 | 1 | |
| S115 | 4 | 4 | - | 1 | 1 | 4 | - | 1 | |
| S1551 | 4 | 4 | - | 1 | 1 | 2 | 1 | 1 | |
| S205 | 8 | - | 8 | - | - | 1 | - | 1 | |
| S215 | 8 | - | 8 | - | - | 1 | 1 | - | |
| S505 | - | - | - | 4 | 4 | 1 | - | 1 | |
| S515 | - | - | - | 4 | 4 | 1 | 1 | - | |
| Type M, size on a DIN rail: 4 modules (7 cm) | |||||||||
| M205 | 20 | 4 | 14 | 1 | 1 | 2 | 1 | 1 | |
| M2652 | 20 | 4 | 14 | 1 | 1 | 2 | - | 1 | |
| M525 | 8 | 4 | 5 | 5 | 5 | 3 | 1 | 1 | |
| M535 | 4 | - | 5 | 8 | 8 | 2 | 1 | - | |
| M5652 | 8 | 4 | 5 | 5 | 5 | 3 | - | 1 | |
| Type L, size on a DIN rail: 4 modules (7 cm) | |||||||||
| L205 | 36 | 4 | 28 | 1 | 1 | 2 | 1 | 1 | |
| L525 | 24 | 4 | 19 | 5 | 5 | 3 | 1 | 1 | |
1- 2× Ethernet (1 Gbit + 10/100 Mbit)
2 - wireless LTE module
Further information
Documentation
|
Instruction leaflet Technical and safety information |
download | |
|
Modbus register map Table overview of Modbus registers |
download | |
|
Certification Declaration of conformity |
download | |
|
Product datasheet Product features and technical information |
download |
| Digital inputs | 10 |
| Digital outputs | 4 |
| Relay outputs | 5 |
| Analog inputs | 5 |
| Analog outputs | 5 |
| RAM | 1 GB |
| RS232 interface | 1 |
| RS485 interface | 3 |
| Ethernet | 1 Gbit |
| USB 2.0 | 2 |
| Power | 24V DC |
| Internal memory | 8GB eMMC |
| 1-Wire bus | Yes (galvanically isolated) |
| Dimensions | 140 mm x 90 mm x 60 mm |
| Mounting | DIN (35 mm) |
| Weigth | 368 g |
| RTC backup | max. 7 days |
