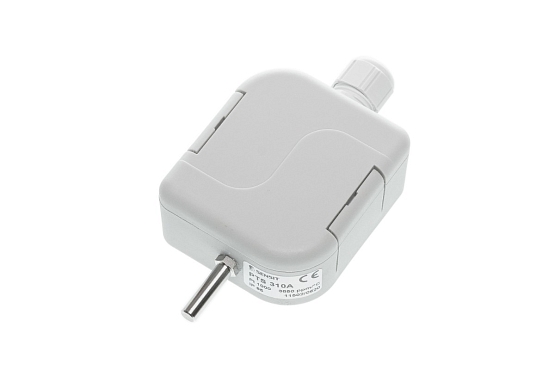

The PTS 310A resistance temperature sensor is designed for measuring the temperature of gaseous substances in outdoor and industrial areas. The device utilizes the Pt1000 resistance temperature sensor placed within a metal sheath. The plastic head (IP65 protection) contains a spring terminal for easy wire connection. The product underwent a metrologic inspection and can be used in any system compatible with the Pt1000 sensor.
The PTS 310A resistance temperature sensor is designed for measuring the temperature of gaseous substances in outdoor and industrial areas. The device utilizes the Pt1000 resistance temperature sensor placed within a metal sheath. The plastic head (IP65 protection) contains a spring terminal for easy wire connection. The product underwent a metrologic inspection and can be used in any system compatible with the Pt1000 sensor.
The sensor can be connected to all systems that support resistance measurements and are compatible with Pt1000 temperature sensors. The wiring scheme is available in the product’s documentation (see the Files tab above).
The sensor is compatible with the Mervis and the EVOK web service APIs. In both environments, the sensor can be used immediately after connection.
Manual User guide and technical documentation |
download | |
Product datasheet Product features and technical information |
download |
Sensing element type | Pt1000/3850 |
Temperature measuring range | -30°C/+100°C |
Measurement accuracy | Class A: Δt = ± (0.15 + 0.002|t|) in °C, Class B: Δt = ± (0.3 + 0,005|t|) in °C |
Internal wiring resistance | 0.023Ω |
IP rating | IP65 |
Model name | PTS 310A |
