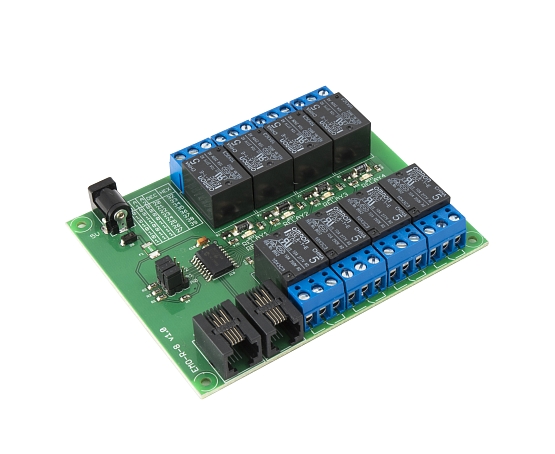

8-Relay Addon EMO-R8

EMO-R8 is an extension module for Unipi 1.1 with 8 additional relay outputs 250 V∿/10 A or 30 V⎓/10 A. It is suitable to use it in the case when relay outputs on the Unipi v1.1 are not enough and buying another control unit is unnecessary. It is to be connected to Unipi over I²C channel.

• 8 × relay output 250 V∿/10 A or 30 V⎓/10 A
• Custom address settings via jumpers
• Is to be connected to I²C via RJ11 connector
• Power supply 5 V⎓
• Product includes connection cable
