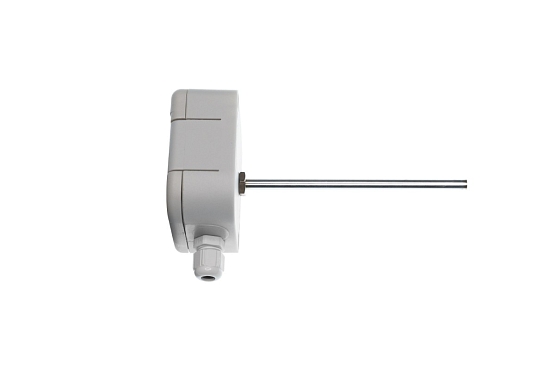

1-Wire sump temperature sensor with a head
The SD 125C-120 sensor is designed for measuring the temperature of gaseous or liquid substances. With a suitable thermowell and a holder, the sensor can be also used inside pipelines and air or water distribution systems. The sensor utilizes the DS18B20 temperature chip placed within a metal sheath. The plastic head (IP65 protection) contains a spring terminal for easy wire connection. For the communication with the control system, the sensor utilizes the 1-Wire bus and can be used in any system compatible with the DS18B20 chip. The product underwent a metrologic inspection.
45,45 € excl. VAT
In stock > 10 pcs
Extra > 10 pcs within 10 days after ordering
Check availability
Product description
The SD 125C-120 sensor is designed for measuring the temperature of gaseous or liquid substances. With a suitable thermowell and a holder, the sensor can be also used inside pipelines and air or water distribution systems. The sensor utilizes the DS18B20 temperature chip placed within a metal sheath. The plastic head (IP65 protection) contains a spring terminal for easy wire connection. For the communication with the control system, the sensor utilizes the 1-Wire bus and can be used in any system compatible with the DS18B20 chip. The product underwent a metrologic inspection.
Compatibility
The sensor can be connected to all systems featuring a 1-Wire bus. Wiring scheme is available in the product’s documentation (see the Files tab above). The sensor’s grommet is placed on the bottom edge of the plastic head for easy connection of multiple sensors to a single bus. If needed, the IP65 protection can be retained by adding a second grommet.
The sensor is compatible with the Mervis and the EVOK web service APIs. In both environments, the sensor can be used immediately after connection.
Further info
Documentation
|
Product datasheet Product features and technical information |
download | |
|
Manual User guide and technical documentation |
download |
| Sensing element type | DS18B20 |
| Temperature measuring range | -30°C/+125°C |
| Measurement accuracy | ± 0.5 °C in range of -10°C/+85°C, ± 2°C in range of -30°C/+100°C |
| Power | 3.5 až 5.5 VDC |
| IP rating | IP65 |
| Model name | SD 125C-120 |
